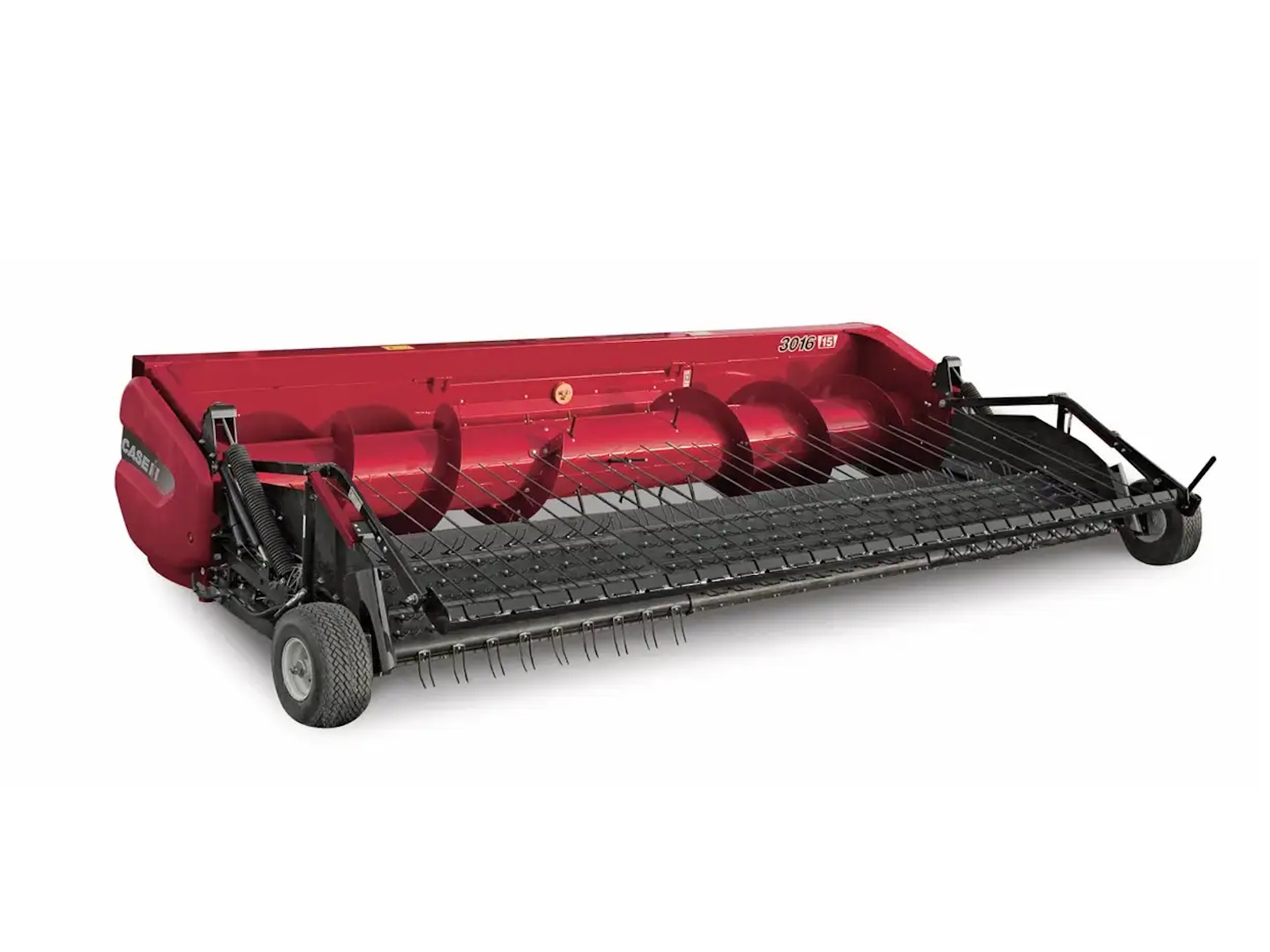

2027 Case IH 3016

Featuring a center-balanced, shock-absorbing pickup suspension for smooth pickup.

The Ideal Harvest Tool

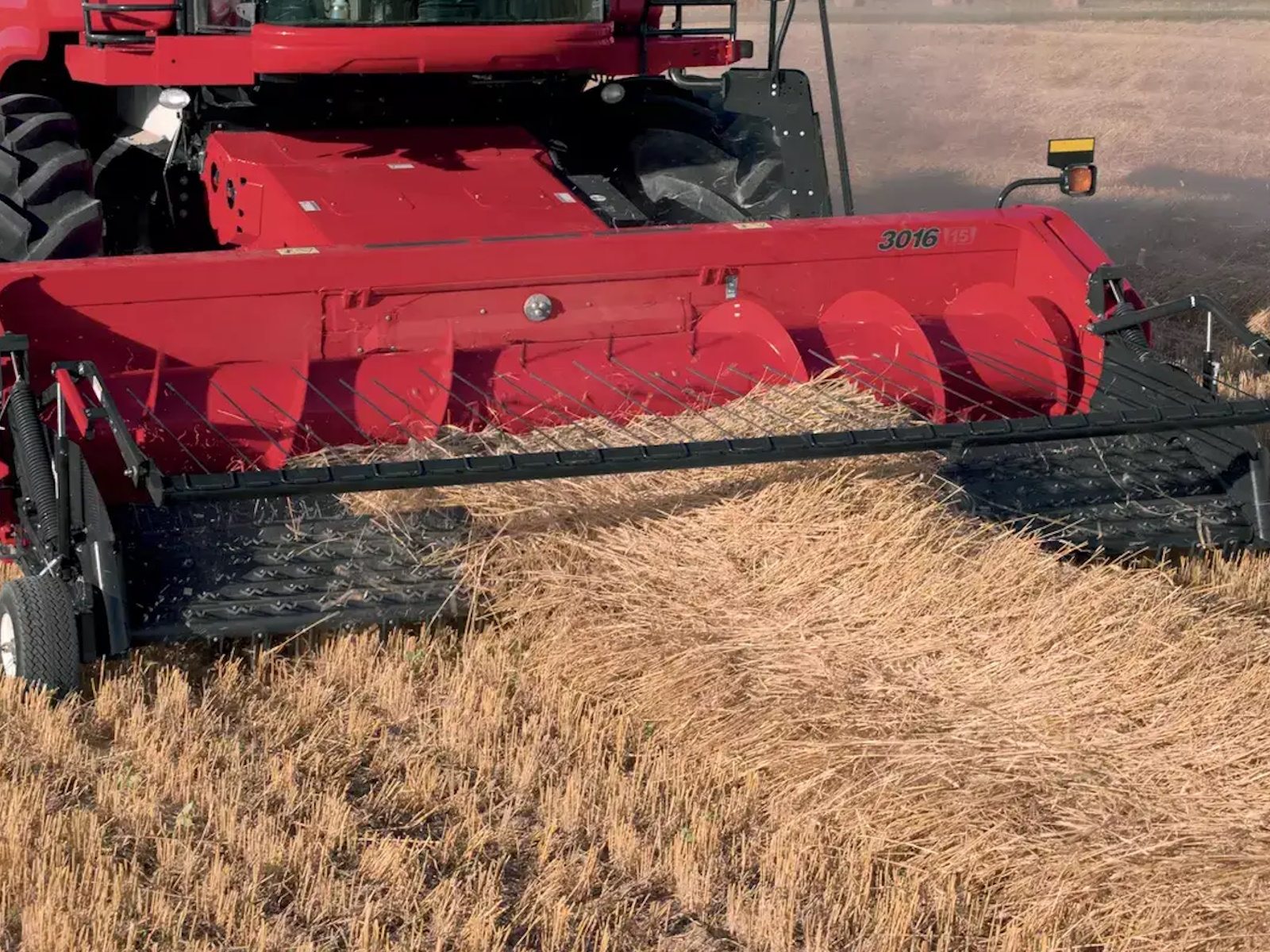

The Case IH pickup head is a grain-harvesting workhorse. Designed to float over tough terrain, the 3016 pickup head gently lifts swaths and transports to the combine with minimal seed loss.
Build & Price

Features May Include:

Frame Design

Maximize Yield Potential

The entire frame on the pickup head is constructed to optimize grain yield. The frame itself is completely welded and has 12 inches of flex along the head.

• No daily maintenance required
• The two-stage delivery unit has a pickup belt and transfer belt to optimize pickup and transfer of crop
• An integrated seed dam between the rear picking belt roller and floor prevents grain/header loss
• Plastic teeth on the pickup belt gently handles crop

Auger

Efficiently Feed Swaths into the Combine

• A heavy-duty, fully welded auger
• Floating 26-in. diameter with deep flighting
• Double V pattern retractable auger fingers with patented rubber retaining system
• A heavy-duty RC 80 auger drive chain

Suspension and Floatation

High Performance Even in Tough Conditions

The Case IH 3016 pickup head is designed to provide maximum floatation and excellent picking ability. Key suspension features include:

• 12-in. movement range
• Header height control with two sensors
• Standard mechanical suspension maintains consistent ground pressure and prevents bouncing
• Optional in-cab hydraulic suspension adjustment – allows operator to adapt to changing conditions
• Fixed gauge wheels with height adjustment allows for optimum picking
• Optional castor gauge wheels eliminate ground scuffing and reduce frame stress in turns
