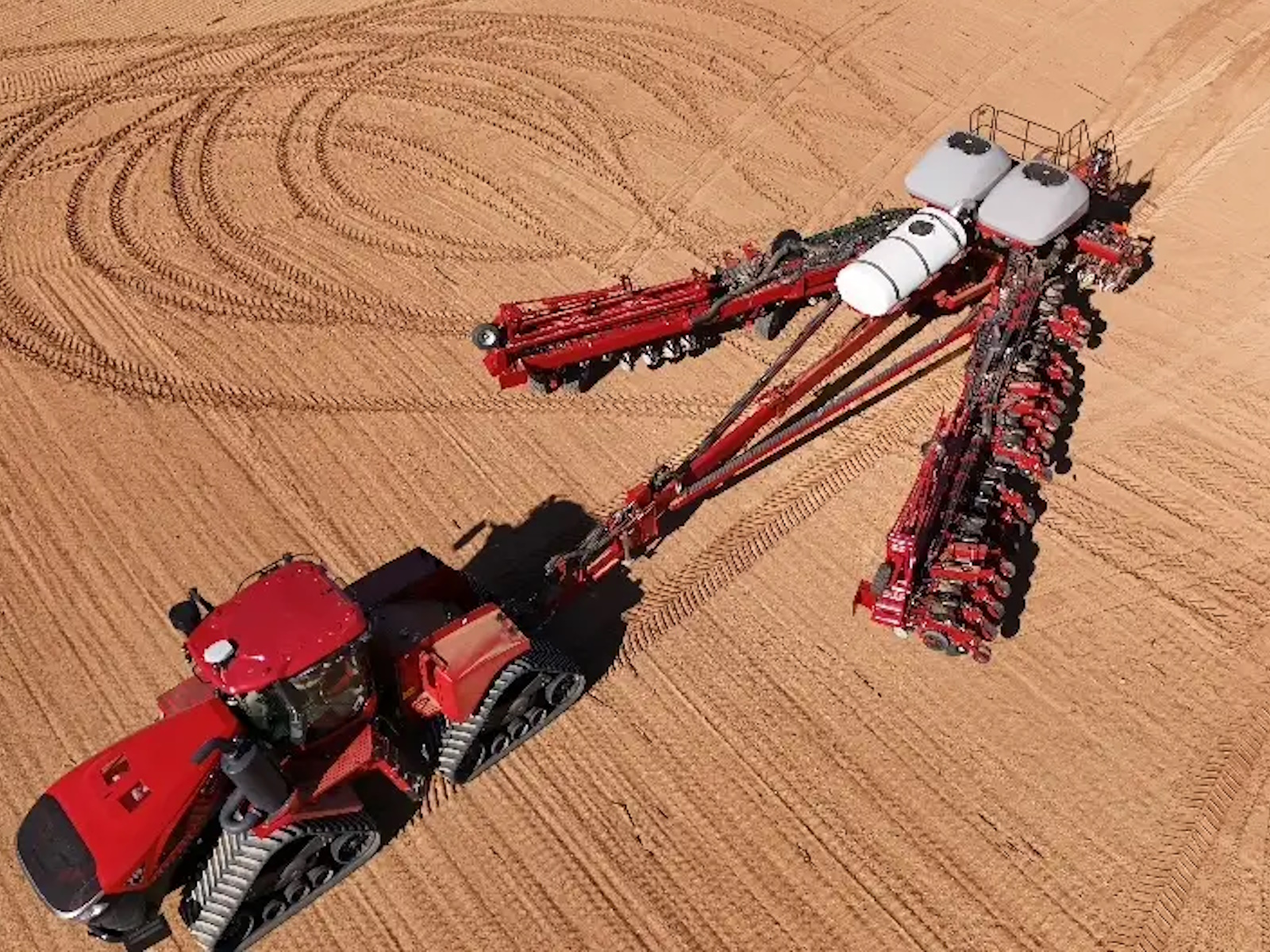

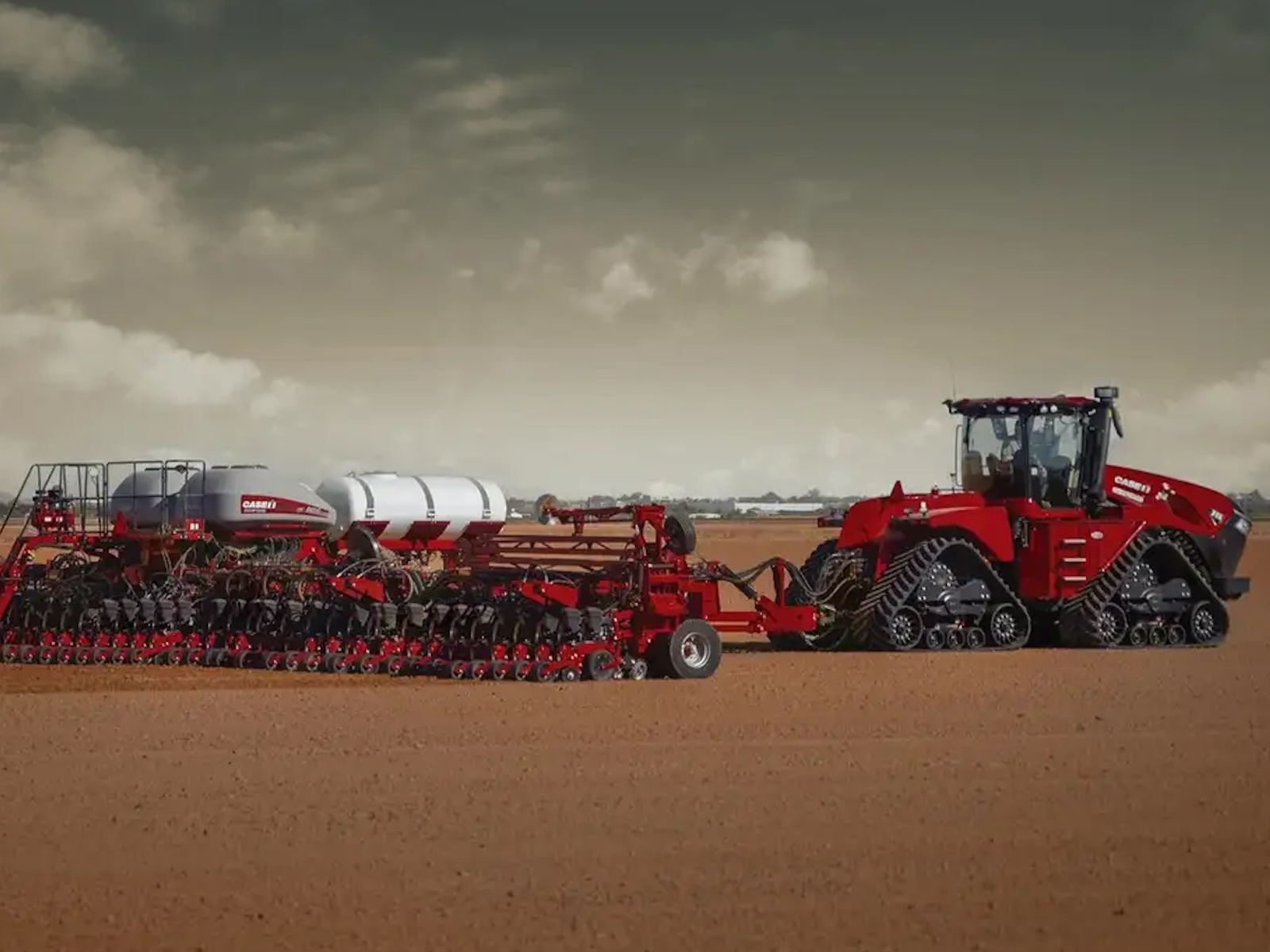

2027 Case IH 2160 Large Front Fold Trailing

More acres, more efficiency, more productivity—that’s the AE50-award-winning 2160 Early Riser planter. Designed with innovations that have earned multiple AE50 design awards, this planter is built to cover more ground in less time. Choose from various wheeled or tracked configurations, including 24-, 32-, 36-, 47- or 48-row models with spacing options down to 15 inches. Toolbars from 44 to 90 feet, requiring 380 horsepower minimum, ensure you meet your optimal planting windows.

Large Capacity for Fewer Fills

• Standard bulk-fill system with two 60-bushel seed tanks (120-bushel total capacity) ensures reliable seed delivery even at high populations. Optional bulk-fill seed tank scales allow for precise inventory management.
• Liquid Fertilizer Capacity: Available with a 600-gallon liquid fertilizer bulk-fill option featuring built-in agitation for extended operational time.

Superior Ground Following and Durability:

• Five-Section Toolbar: Specialized for larger configurations (32-row, 36-row,30-inch, and 48-row), this feature delivers optimal ground-following capabilities, ensuring consistent planting depth on uneven terrain.
• Robust Design: Built with a durable, proven frame design and rugged, heavy-duty row units for maximum longevity and reliability in challenging conditions.

Advanced Flotation and Reduced Compaction:

• Optional Rowtrac™ Carrier System: Increase flotation and reduce soilcompaction to boost potential yield. This feature includes a steerable Rowtrac option for improved control.
• Maneuverability in Difficult Fields: Wheels positioned in front of the tool bar enhance maneuverability in soft, sticky, or stony field environments.

Optimized Transport and Control:

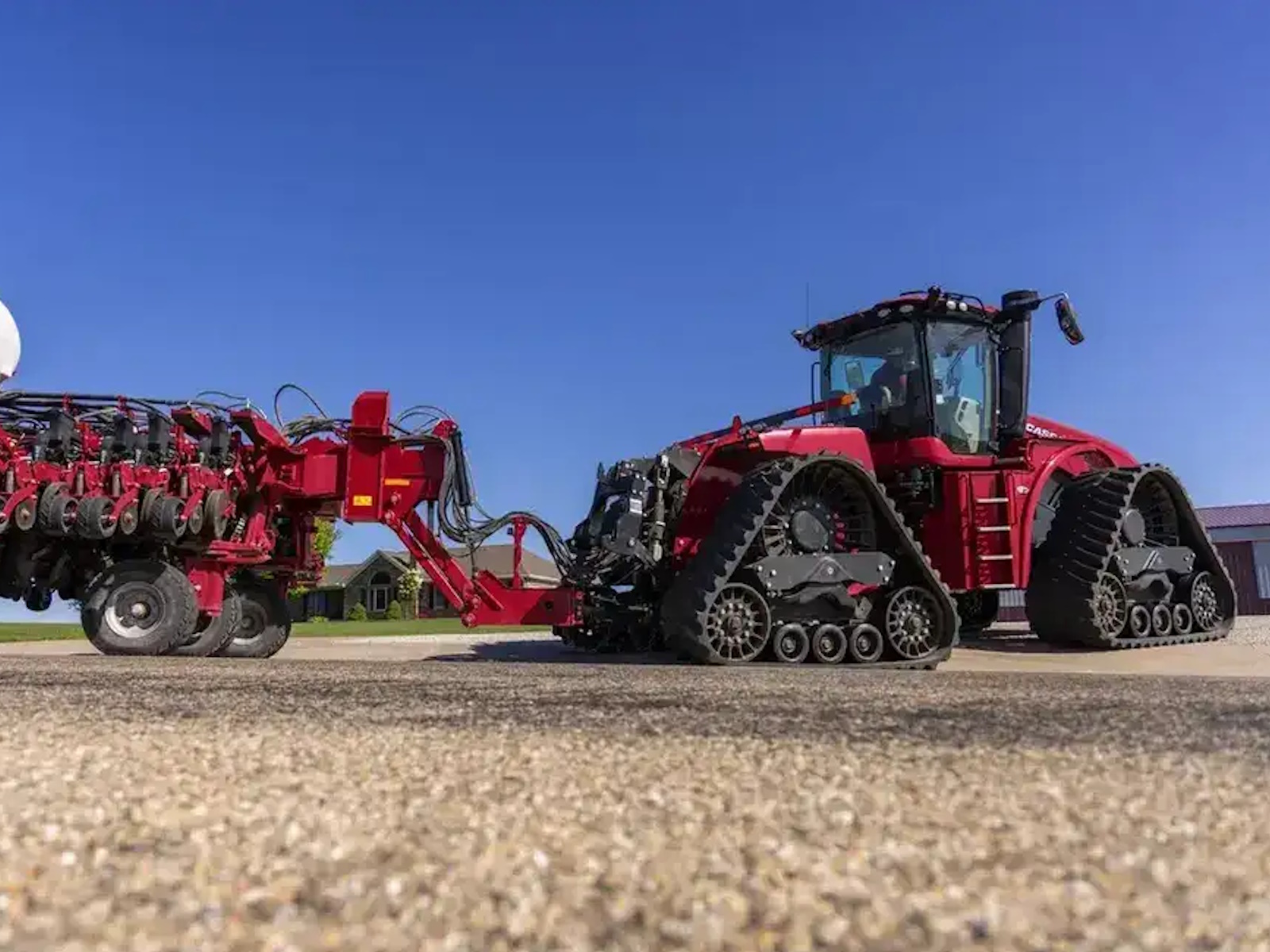

• Unique Roading System: A unique transport arrangement minimizes weight transfer onto the tractor during roading for safer and easier movement between fields.
• Improved Turning: The optional steerable wheeled rear axle and steerable center section tires (on 60-foot and larger models) dramatically improve maneuverability into tight field entrances.

Precision Fertilizer Management:

• Integrated Liquid Systems: Choose from optional in-furrow or banded liquidapplication systems with in-cab controls for variable rate or prescription-based application, streamlining crop care.
• Per-Row Monitoring: The optional EM FlowSense™ system provides per-row liquid fertilizer monitoring directly through the Case IH Pro 1200 display.

Maximize Yield Potential

This easy maintenance planter allows for a customizable seeding depth and plants with accuracy by combining a rugged row unit and accessible T-handle depth adjustment. With the industry’s most accurate technologies, you can achieve high-efficiency planting that adapts to unique field conditions.

Features May Include:

Row Unit

Row Units Built for Accuracy

• Testing proves our industry-leading Early Riser planter row unit is where speed, precision and performance meet. It delivers on the critical agronomic drivers necessary to ensure the perfect seed placement: uniform seed depth in all conditions, good seed-to-soil contact, uniform soil pressure around the seed, accurate in-row spacing and population.

Advanced Seed Delivery

Precise Per-Row Seed Metering

• To achieve the perfect picket fence stand, you need a seed meter capable of delivering accurate and consistent seed singulation, populations and in-row spacing. The seed meter and electric drive at the heart of the 2000 series Early Riser planter row unit do just that. And it does it at your speed.
• Watch the video to get an in-depth look into the agronomic design of the 2000 series Early Riser planter

Precision Planting

Fit the Way You Farm

• As a farmer, you have options to customize your planter the way you want. The Early Riser 2000 Series Planters come with quality components with superior technology from the factory, but you can upgrade your planter and pair it with the most accurate planting technology from Precision Planting®. The 2000 Series Early Riser Planter combines the industry's most agronomically designed row unit with the best technology options from Precision Planting, giving customers more options to optimize their in-field results.

Bulk Fill System

Engineered to Deliver

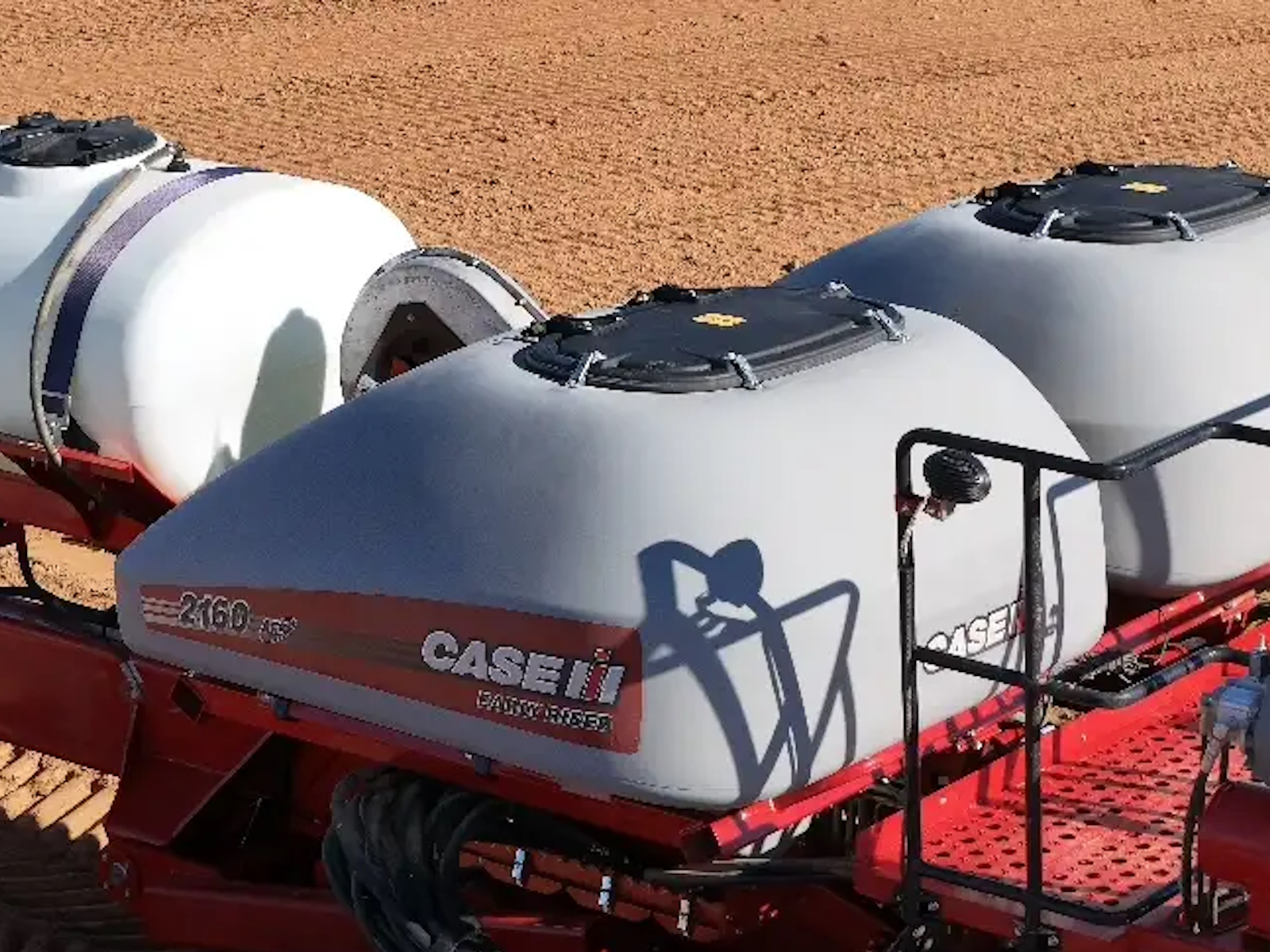

• 2000 Series Early Riser Planters are equipped with bulk-fill tanks to provide reliable seed delivery — no matter the seed population. The 2160, 2150S, 2150 and 2140 models feature two bulk-fill tanks, up to 120-bushel combined tank capacity depending on the configuration, and the 2130 model features one 50-bushel tank.
• Optional 3.0 or 1.9-bushel on-row individual hoppers are available on all 2110, 2120, 2130 and 2150 models.

Carrier System

Reduced Compaction & Better Maneuverability

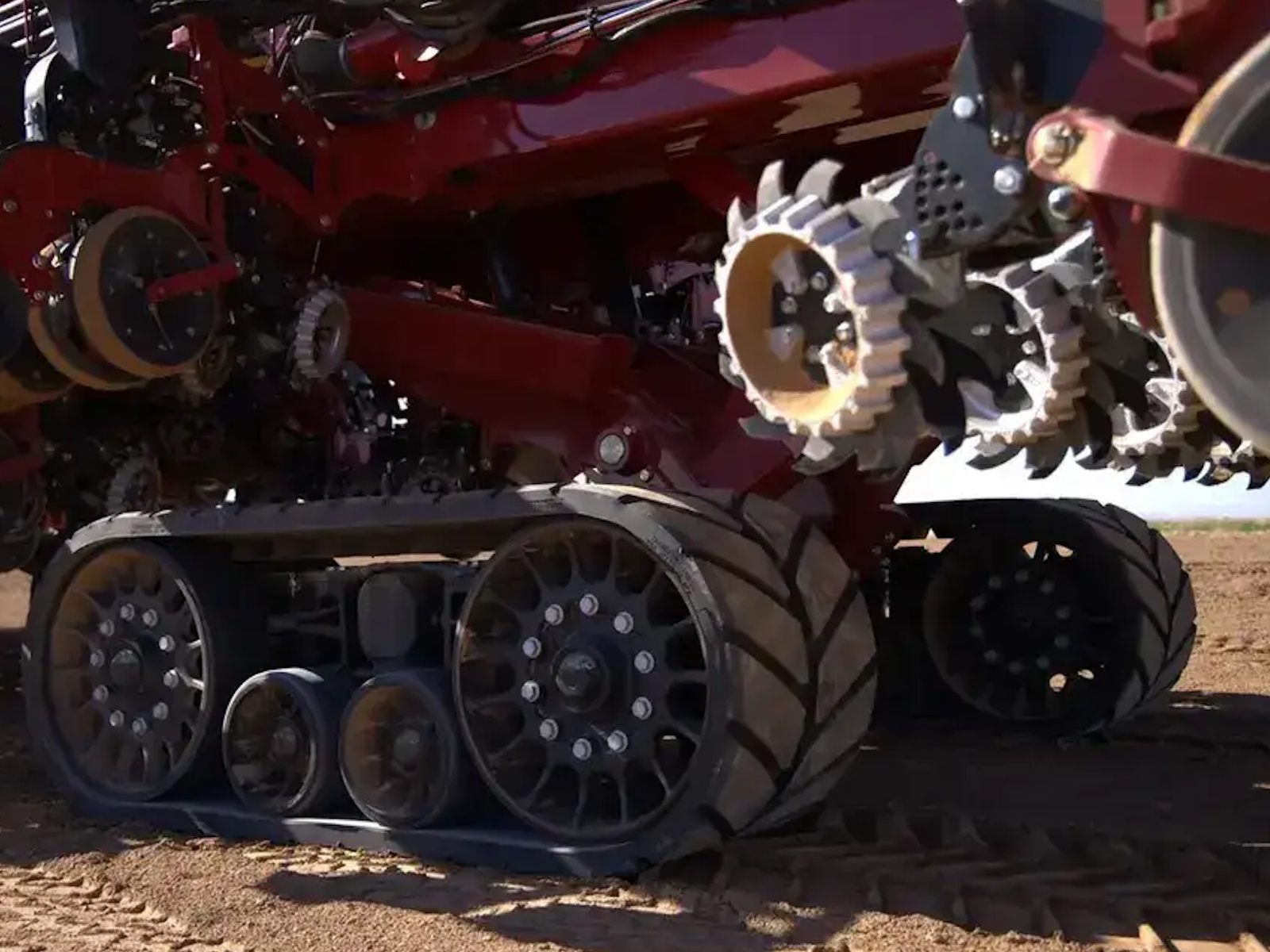

• Extend your planting window with the 2000 series Early Riser planter Rowtrac™ Carrier System currently available as a factory-installed option. With increased flotation over a wheeled carrier, this system reduces compaction and improves yield potential in wet spring conditions. Providing better maneuverability in wet fields with transport steering and excellent stability on uneven terrain with fore-aft track oscillation, the Case IH Rowtrac carrier system maximizes productivity.

Split-Row Planting

2150S Split-row Model

The Early Riser 2150S front-fold trailing planter provides the agronomic benefits of split-row planting with greater in-field productivity.

• A fertilizer capacity of 525 gallons with 100 bu. of seed capacity maximizes in-field productivity while individual tank scales provide easy, even filling.
• In-cab hydraulic row unit lift control allows operators to easily convert from 15- to 30-inch spacing.
• Exclusive, industry-leading offset row unit design helps increase residue flow with minimal plugging opportunities.
• Exceptional ground-following capabilities are made possible by 30 degrees of total wing flexibility, while the hydraulic wing downforce option improves depth control.
• Also available in a 24-row with 20-inch spacing configuration

Crop Nutrient Options

Built to Your Specs

• Direct from the factory, each 2000 series Early Riser planter is configured to meet your specific needs and fit perfectly into your cropping practices. Like never before, you can customize your planter to your farm’s soil types, terrain, fertilizer and chemical application needs, and crop residue management preferences.

FieldOps™

Case IH FieldOps Maximizes Performance

• The Case IH FieldOps operations management solution helps to reduce overlaps and skips and visualize high-resolution, as-applied planting data in real time. With various options to match your operation and equipment needs, FieldOps gives producers the flexibility to control inputs by prescription; and monitor planter performance - all from your mobile device or in-cab display.

Uptime and Upgrades

Easy Service Access & Simplified Adjustments

• Many components of our 2000 series Early Riser planters – including the metering system and row unit settings – provide tool-free crop changes and adjustments. Plus, we’ve eliminated all the mechanical components – hex shafts, bearings, couplers, sprockets, chains and clutches – needed to turn a conventional planter. Fewer things to go wrong means reduced, simpler maintenance.
