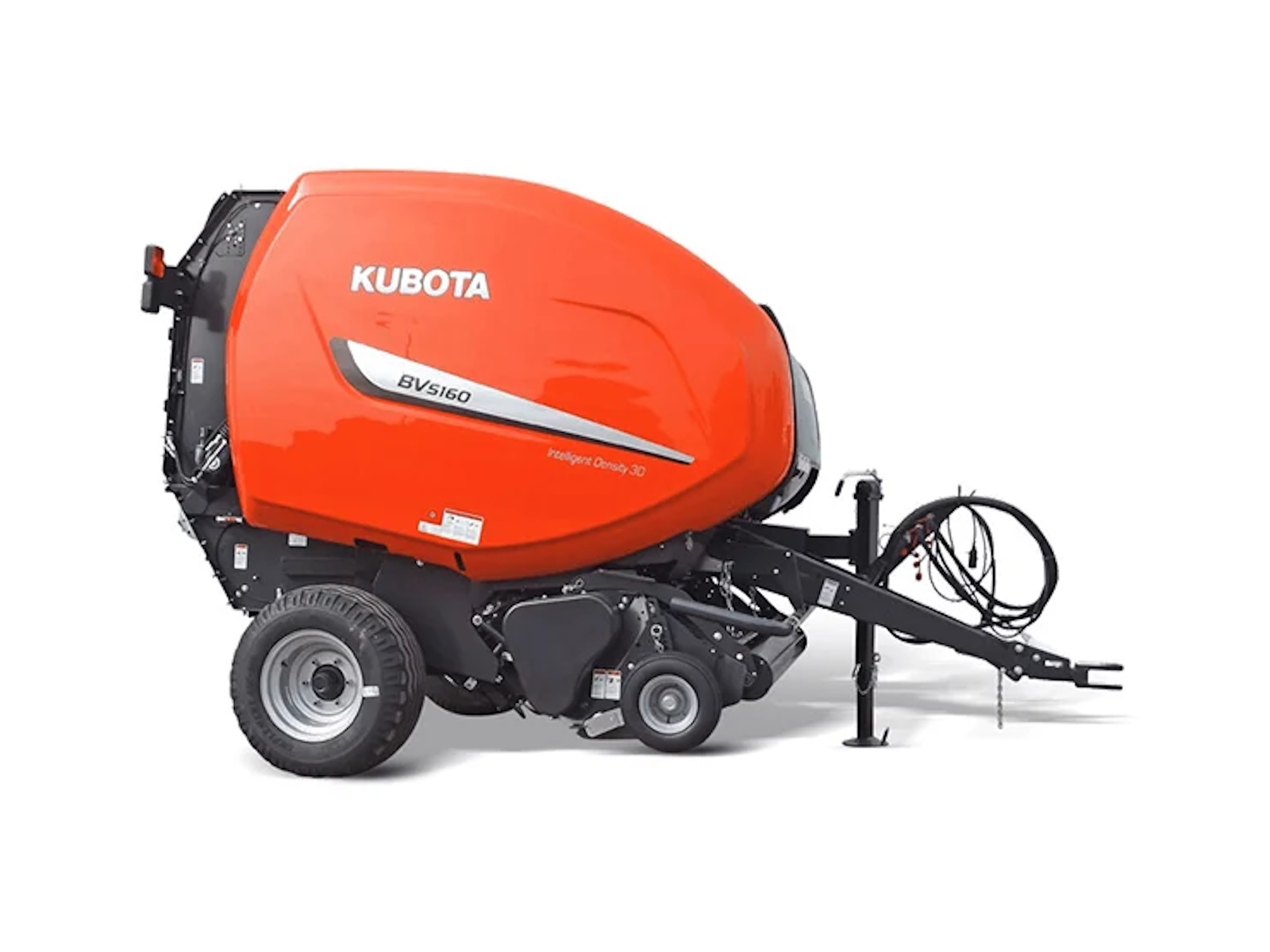

2026 Kubota BV5160 SC14

BV5160
The Kubota BV5160 SC-14 series of balers are fully ISO ready and come standard with a 14 knife cutting system. These balers have been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density!

Features May Include:

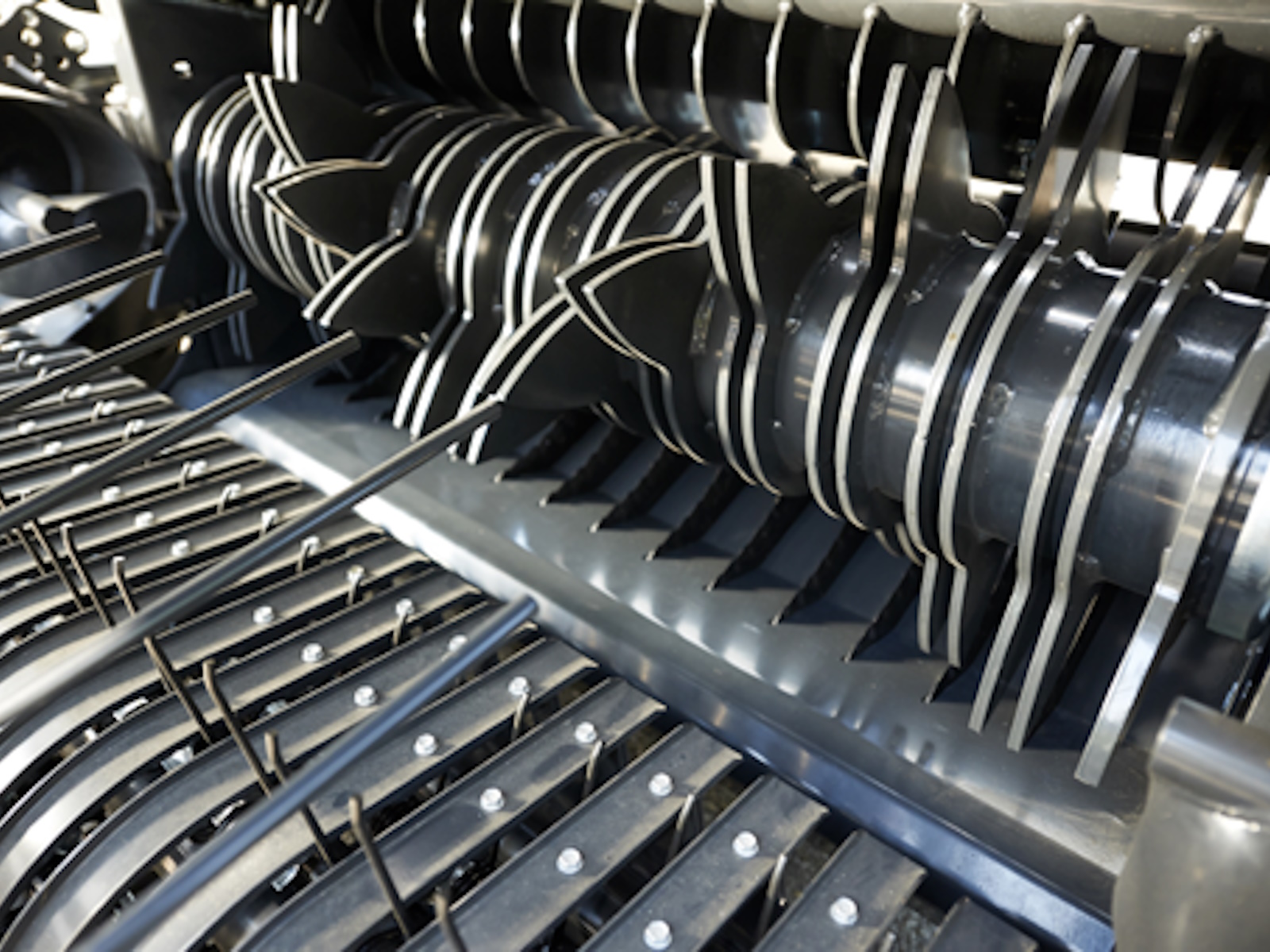

SuperCut-14 Knife Rotor (SC-14 Model)

• The SuperCut-14 version of BV5160 is the ideal solution for silage applications. The 14 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 2.75" it is the ideal solution for producing dense and airtight bales. Also, the bale is easier to break up during the feeding process.

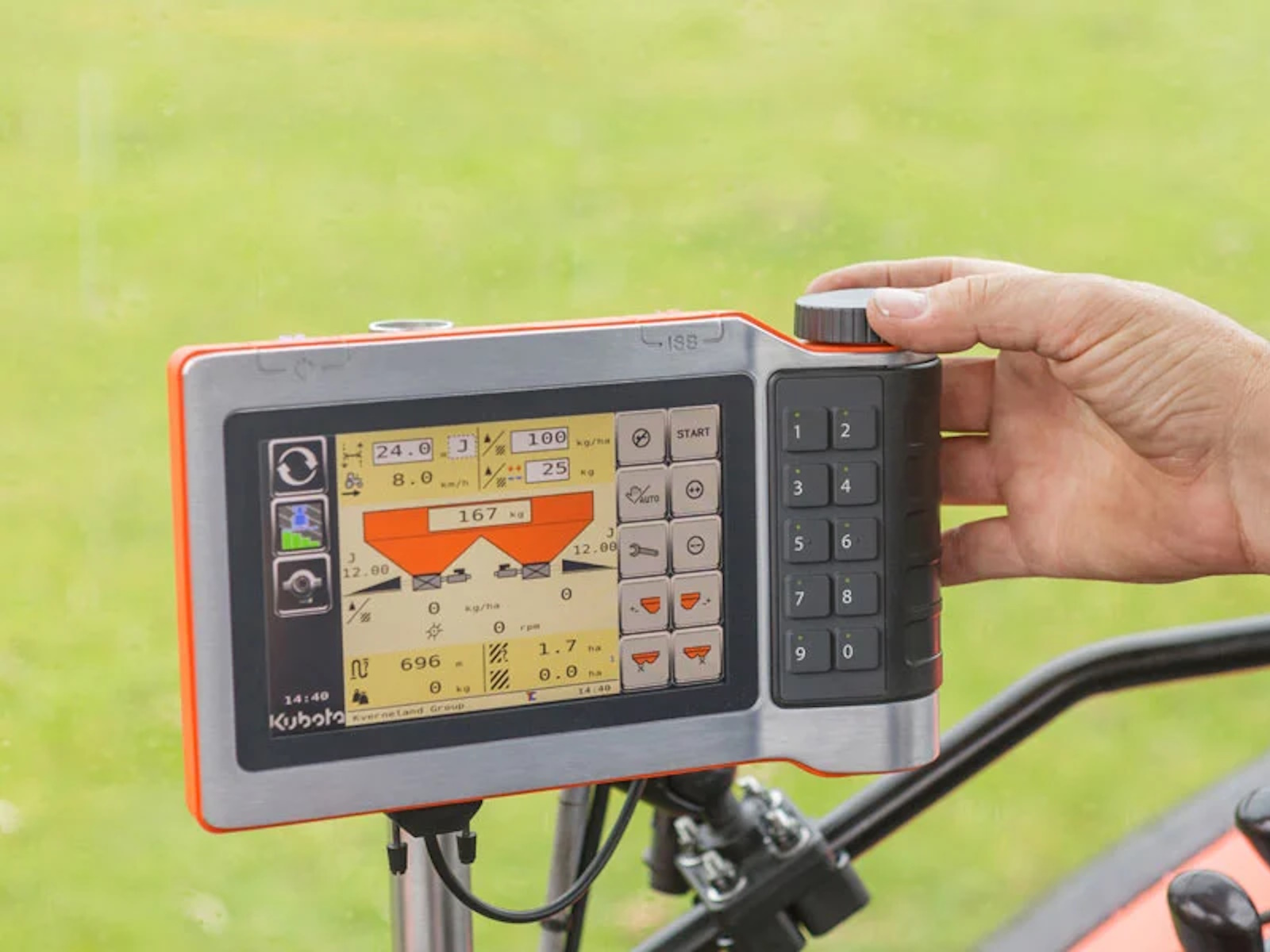

Control Terminal

• The ISOGO Terminal is a universal ISO control terminal which can also be used with other Kubota implements. It gives you full control of all functions from the tractor cab and is shown on a large and very clear digital display. The ISOGO terminal monitors and controls all necessary functions with all relevant parameters/ information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.

Twine Tying

• Automatic twine tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.

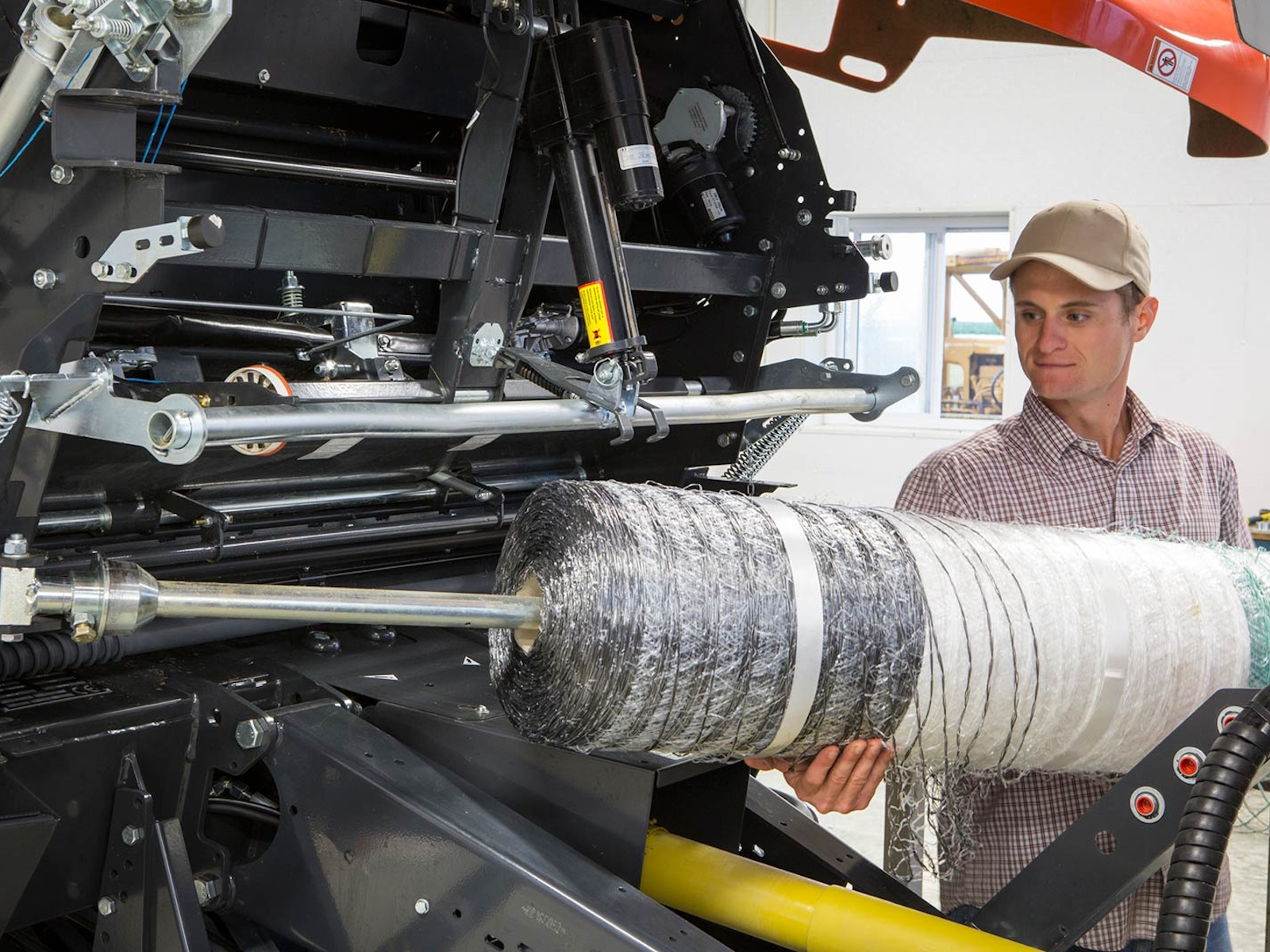

PowerBind Net Wrap

• These balers come with Kubota's patented PowerBind net wrap system. This technology has allowed Kubota to get away from the old feed rollers and eliminate many high wear items. The net is fed directly into the bale chambers by injection plates. This design keeps the net tight at all times, which provides accurate and extremely reliable net injection.  In addition, the PowerBind net system is extremely simple with a very low loading height (no tools required).

Intelligent Density 3D

• The Intelligent Density 3D bale chamber offers a combination of 3 rollers and 5 endless belts, giving it the ability to set the density of the bale in three different zones. The two aggressive front rollers that come in contact with the crop are constantly cleaned by scrapers and are designed to perform well in wet silage. They ensure instant and efficient bale start with immediate bale formation in all crop conditions.

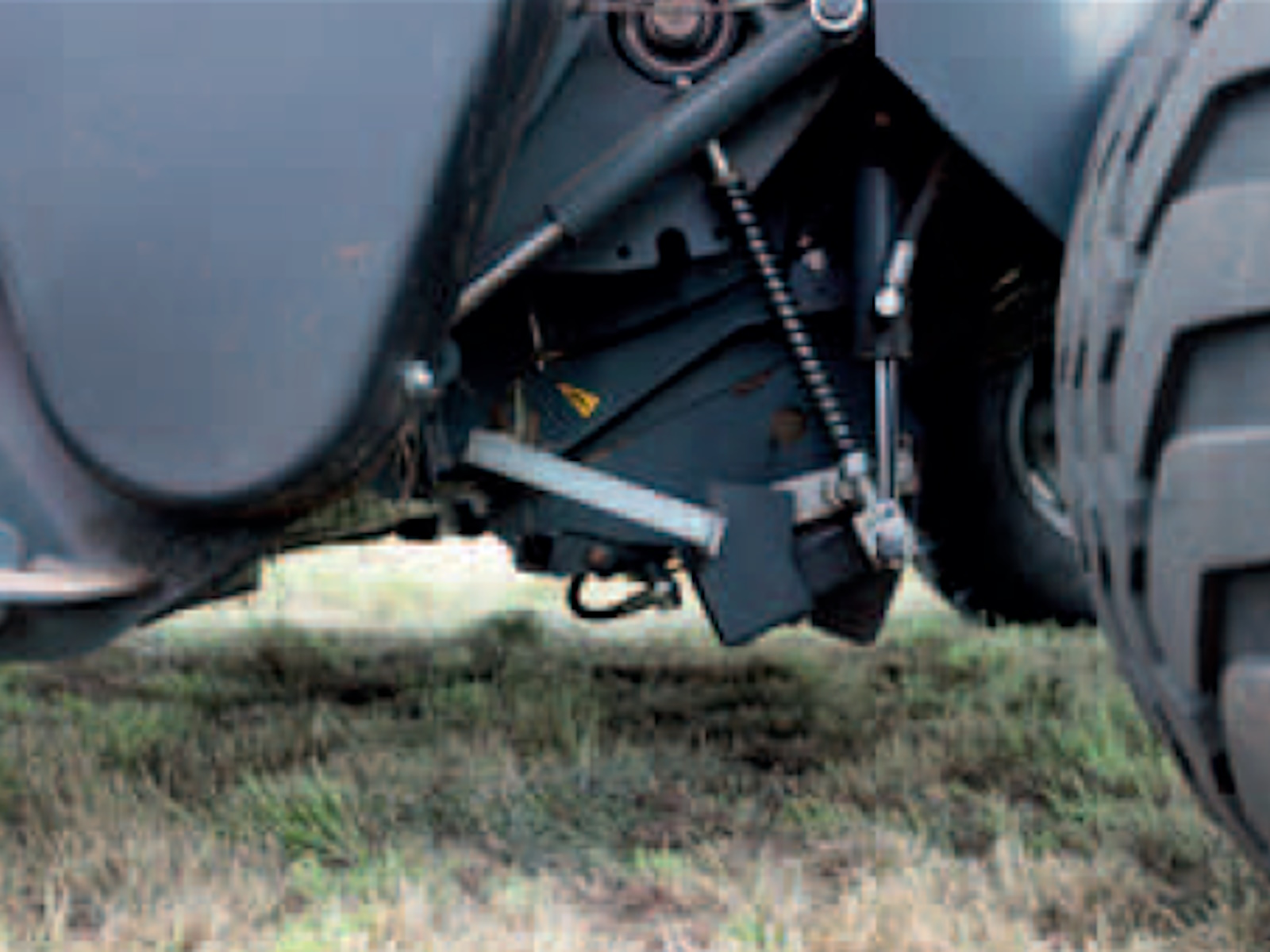

Drop Floor for Easy Unblocking

• The Kubota drop floor enables the operator to clear blockages easily from the tractor cab without any crop loss. Drop the floor and free the rotor blockage, engage the PTO to feed the blockage through and close the floor to continue baling. This standard feature reduces downtime and helps increase productivity.

High Performance Pick-Up and Intake

• On Kubota's BV5200, the load on the tine bars is minimized by using two intermediate supports and two separate cam tracks located at either end of the pick-up. Slip clutch protection comes standard. A roller wind guard is fitted on rotor intake models which pre-compresses the crop, further boosting intake performance. The working width on the BV5200 is 86".

Optional Features:

Operations:

• IsoMatch Tellus

Wheels and Axles:

• 19.0/45-17
• 500/45-22.5
