2026 MaxxD Trailers G6X10222

THE BEST OF BOTH WORLDS

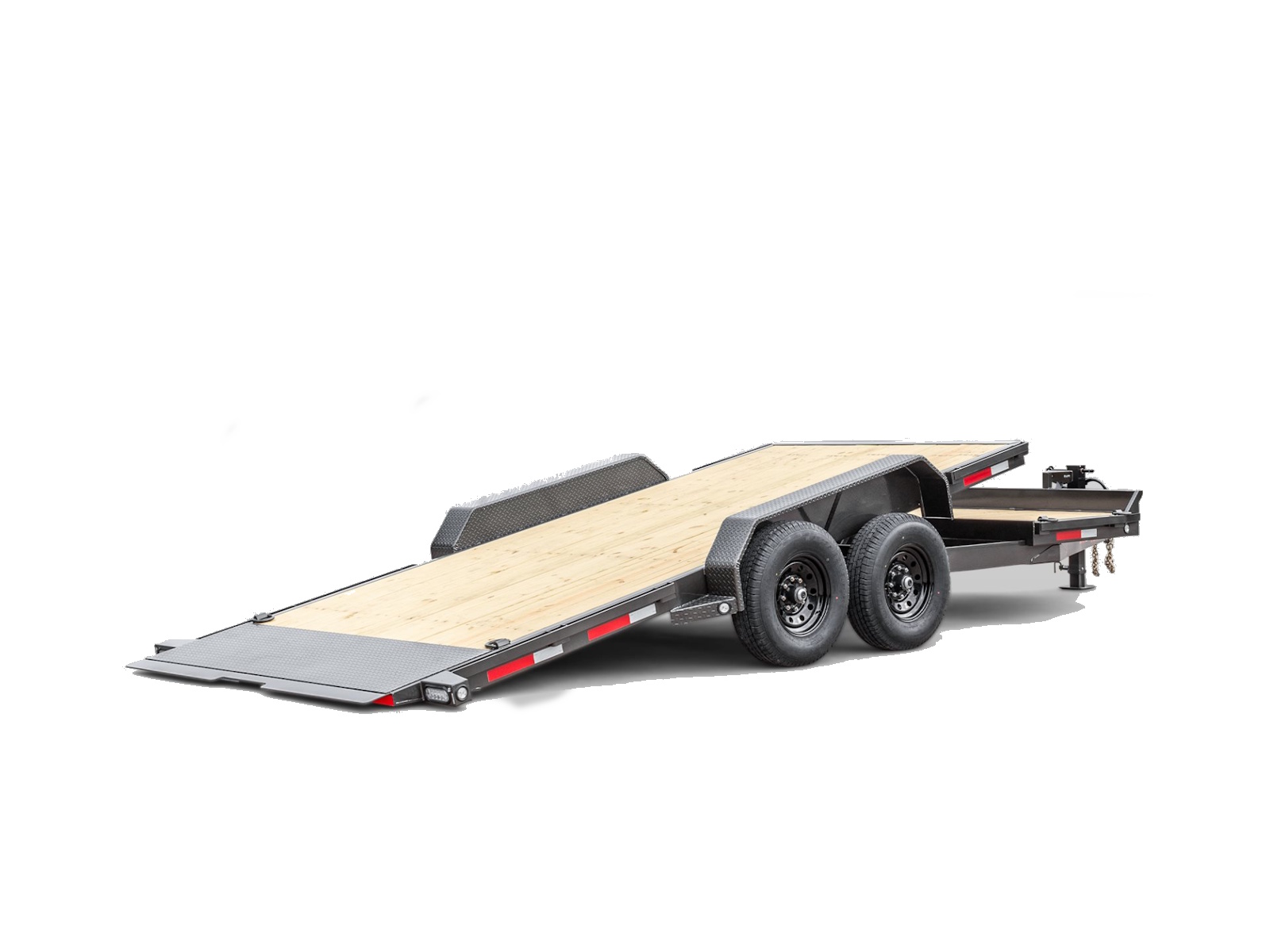

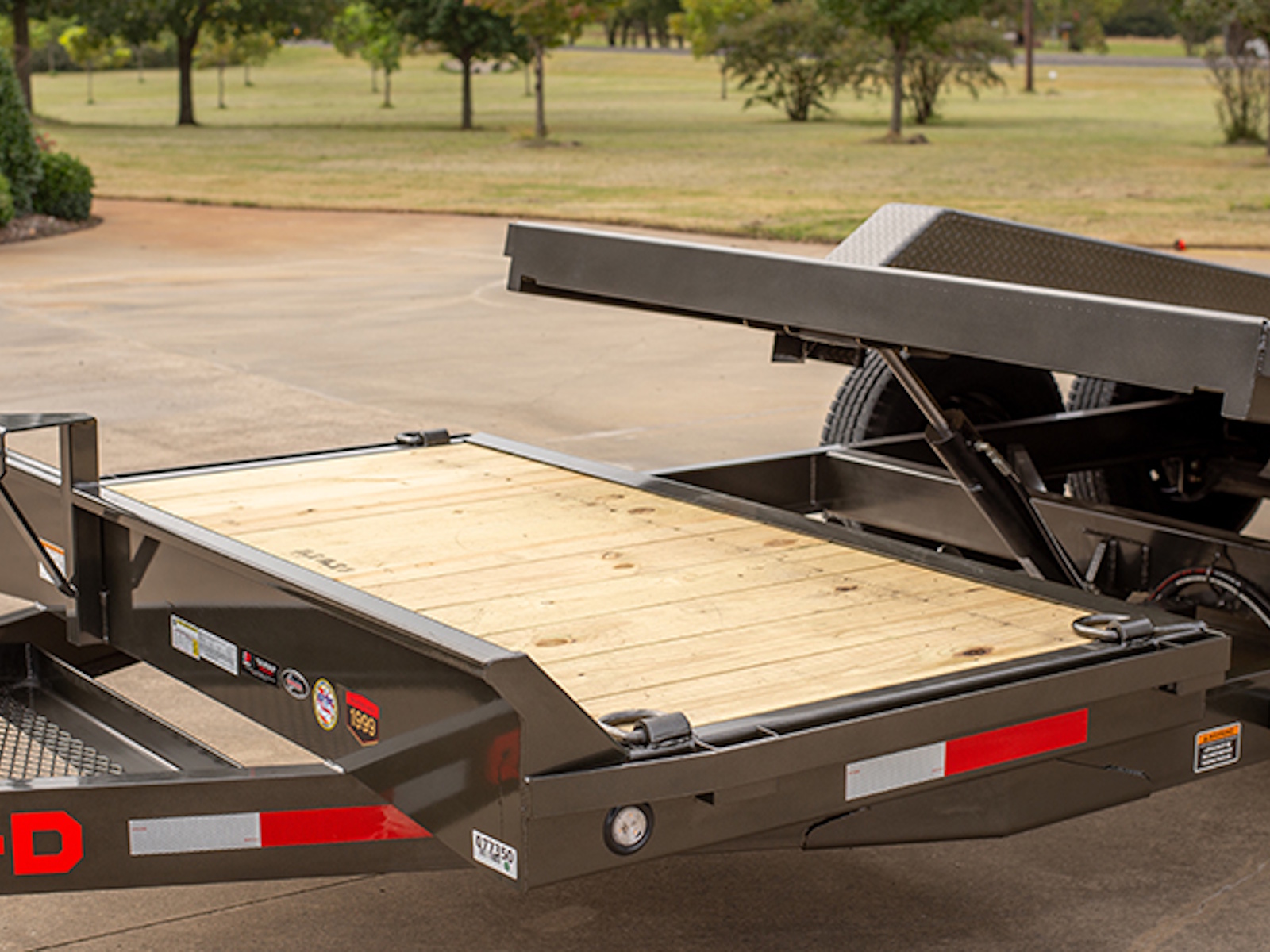

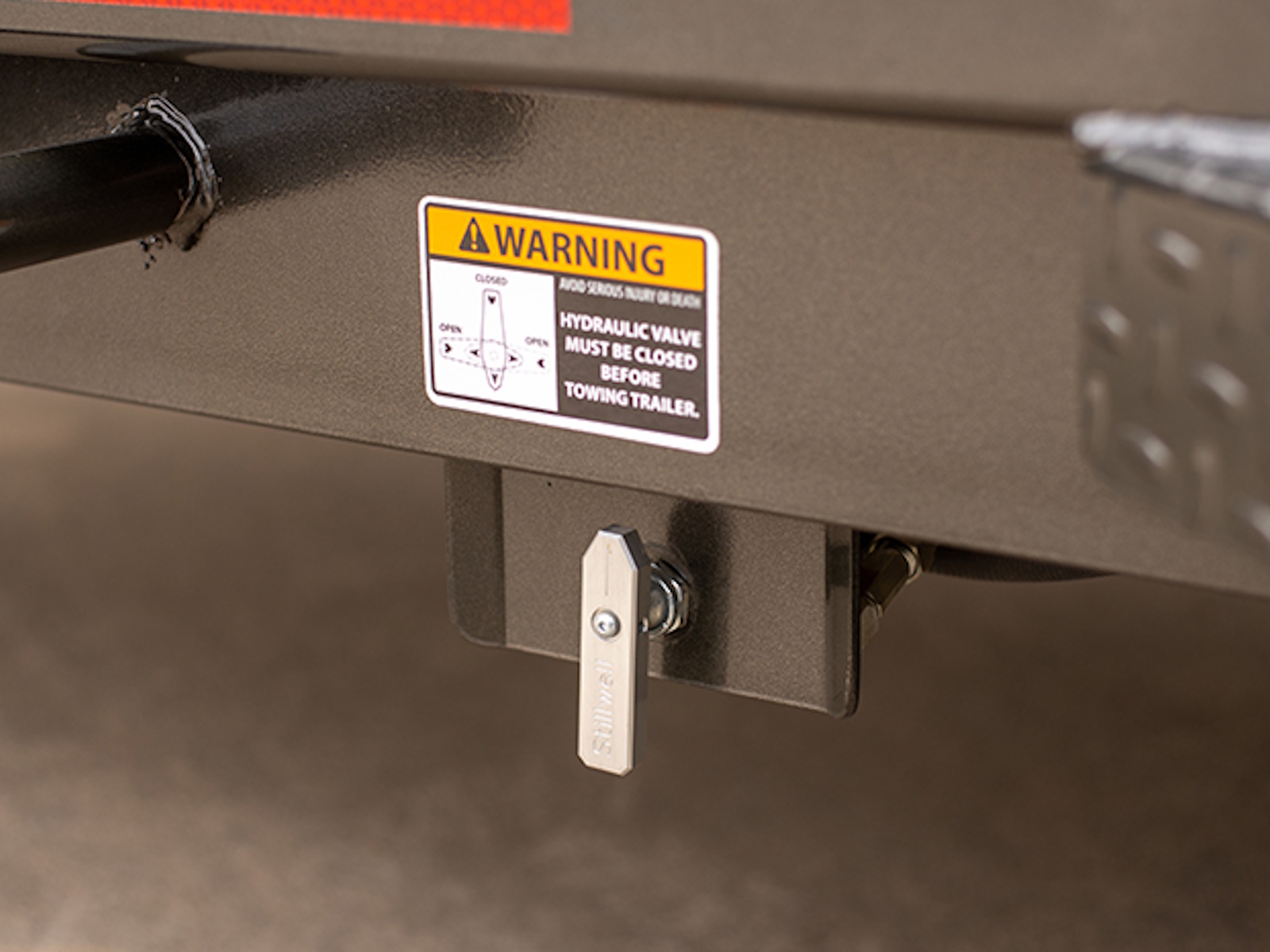

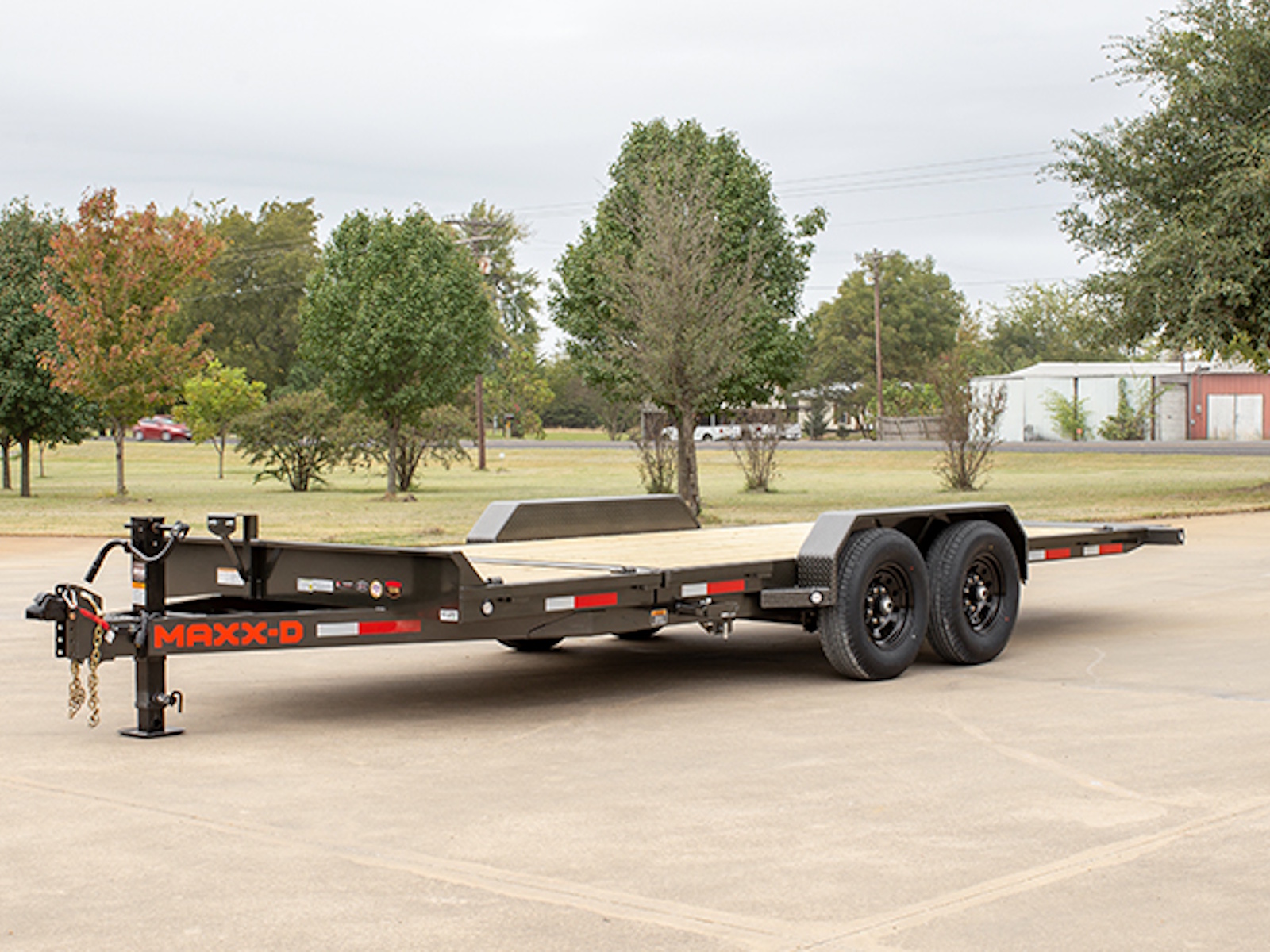

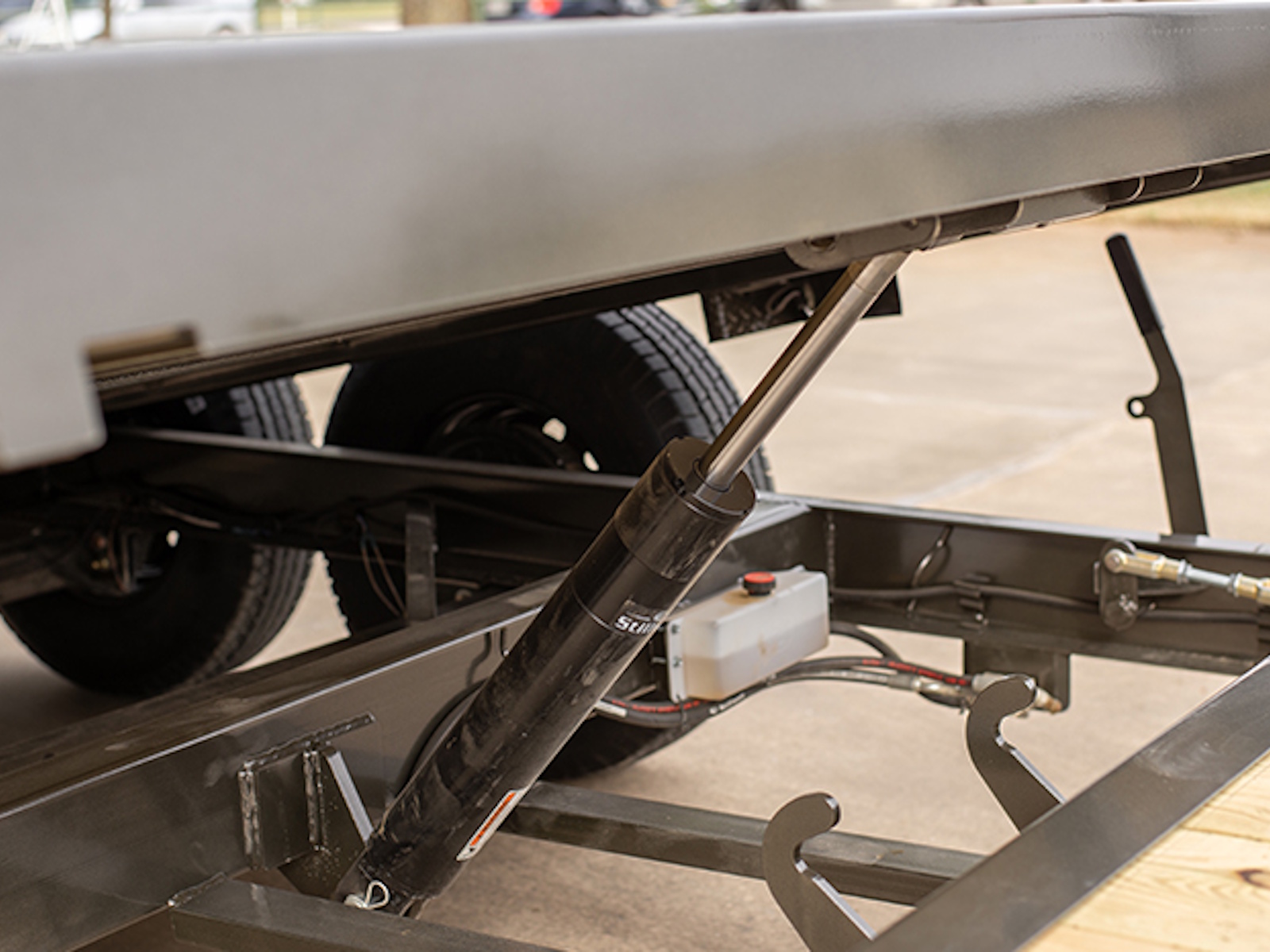

The G6X is the split deck, gravity tilting version of our best-in-class T6X powered tilt trailer. The G6X gravity tilt trailer offers a hydraulically dampened tilting deck, with your choice of a 4’, 6’ or 8’ stationary front deck. This gives you room to load cargo up front and still have the option to haul equipment like cars, skid steers, scissor lifts, or small forklifts in the back.

Available in 20’, 22’ and 24’ lengths, the G6X gravity tilt car trailer comes standard with two 7K torsion electric brake axles for a GVRW of 14,000 pounds. These torsion axles provide a smoother ride and a longer warranty than comparable spring axles, as well as a lower overall ride height. Combined with the mechanically simple, easy-to-tilt bed, these lower axles make your G6X gravity tilt car trailer safe and easy to load.

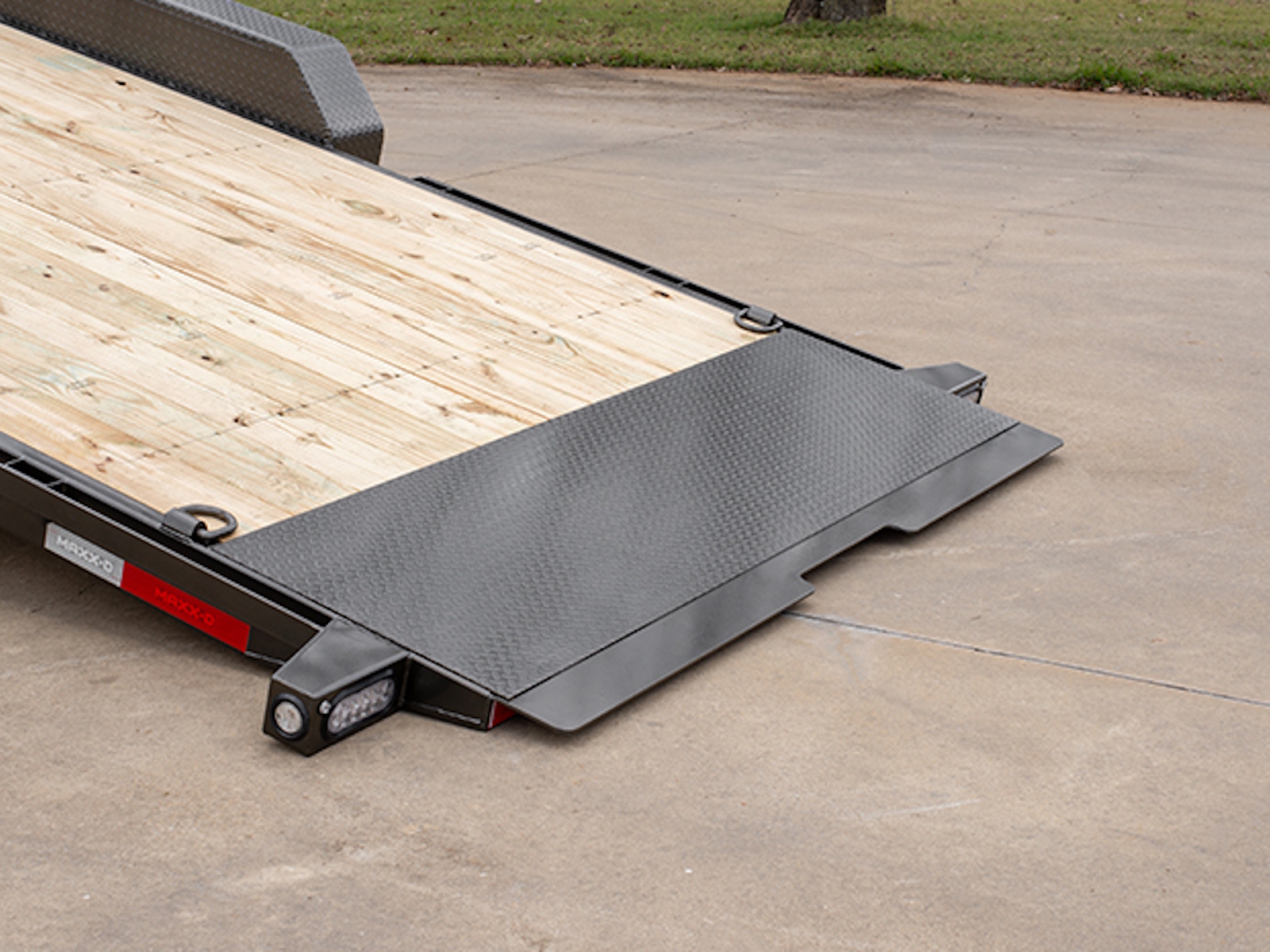

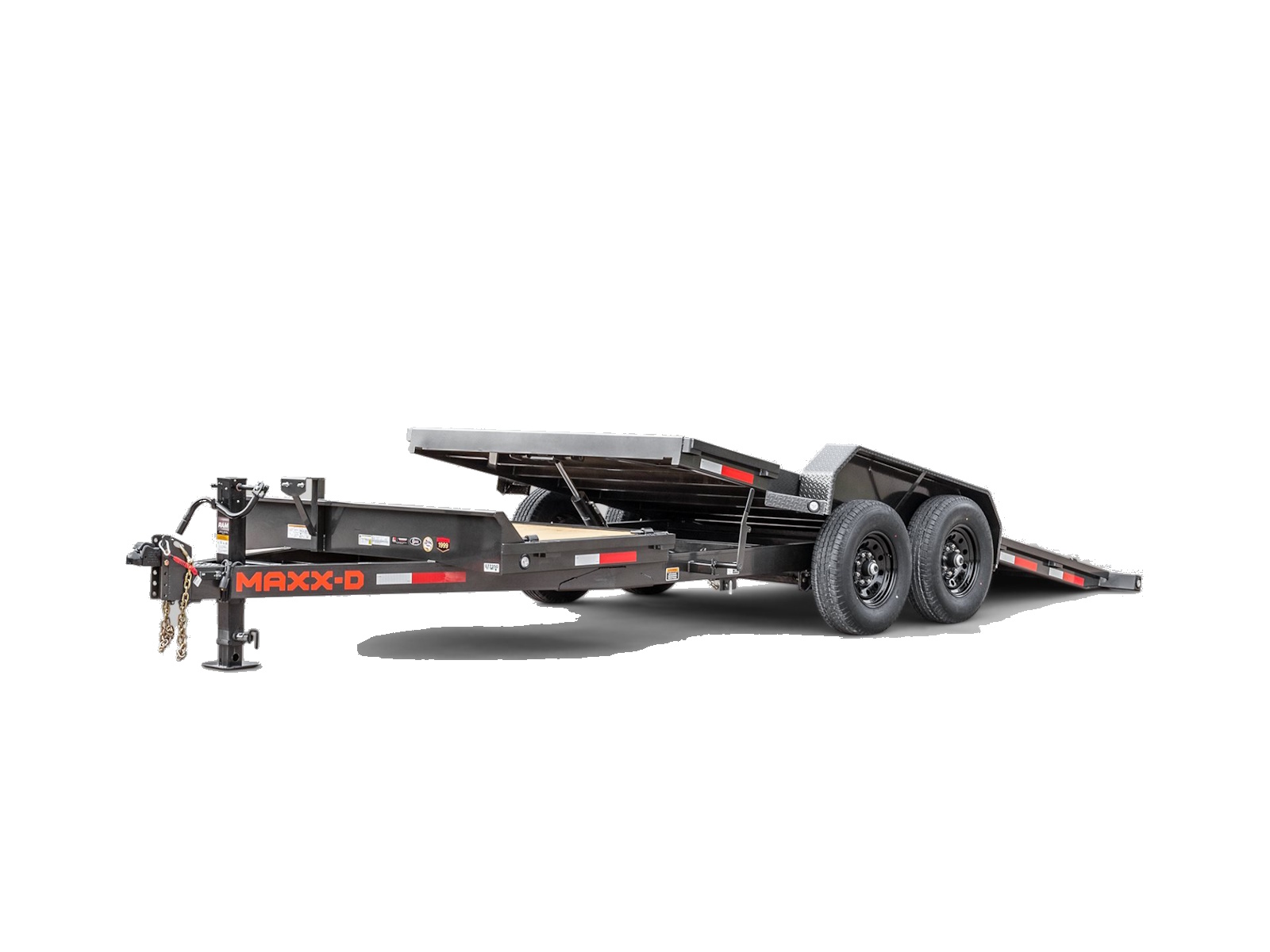

A rugged knife edge rear deck brings the back of the trailer all the way to the ground when the bed is tilted, making it ideal for loading low-clearance equipment like scissor lifts and lighter forklifts. The diamond-plate steel edge provides enhanced durability for this high-wear area as well.

Like all MAXX-D trailers, the G6X gravity tilt car trailer is finished with our industry-leading powder coating process. Six different steps all work together to give your tilt trailer a premium powder-coated steel surface with unmatched durability.

Through our expansive dealer network, we give you the option to configure your G6X gravity tilt trailer with a variety of options to fit your needs. Whether it’s an extra set of D-rings, flooring style, coupler configuration, or your choice of jack, you can get a G6X that’s perfect for whatever it is you’re building.

We build the G6X gravity tilt trailer in an 83” deck width or a 102” overall width with drive over fenders, in either gooseneck or bumper pull configurations. Build something great with the G6X gravity tilt car trailer!

Features May Include:

• 2 5/16″ ADJUSTABLE COUPLER

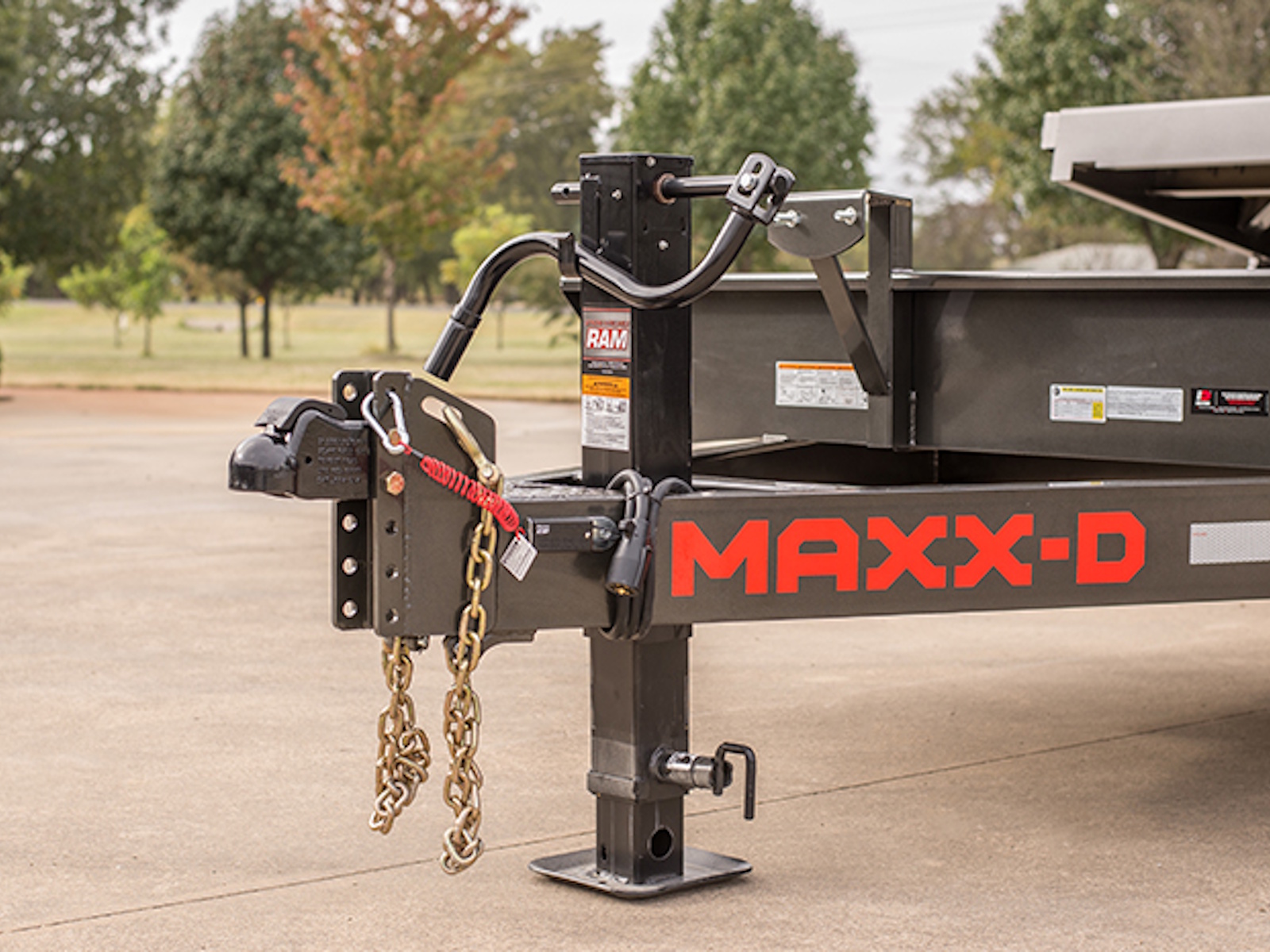

• 1 – 10K DROP-LEG JACK
• 6″ CHANNEL WRAP TONGUE
• 6X2 3/16″ TUBE FRAME
• 3″ CHANNEL ON 16″ CENTERS
• STAKE POCKETS AND RUBRAIL
• 4′ STATIONARY/KNIFE EDGE REAR
• 2-7K ELECTRIC BRAKE AXLES
• TORSION SPRING SUSPENSION 22.5* UP ON 2 AXLES
• ST235/80R16 E RADIAL TIRES
• DOUBLE BROKE DIAMOND PLATE FENDERS
• 2X8 TREATED WOOD FLOOR
• FLUSHMOUNT LED’S/STANDARD WIRING

Options:

COUPLERS

• 21K ADJUSTABLE PINTLE EYE
• 2 5/16″ 30K ROUND GN COUPLER
• 30K ROUND GN COUPLER KING PIN

JACKS

• 2 – 10K DROP-LEG JACKS ON GN
• 1 – HYDRAULIC JACK
• 2 – HYDRAULIC JACKS ON GN

TONGUE/NECKS

• 6″ CHANNEL WRAP TONGUE WITH TOOLBOX OR TOOL TRAY STND HEIGHT I-BEAM NECK (ADD RISER BOX OR DECKOVER)
• 6″ EXTENDED HEIGHT RISERS NECK (ADD RISER BOX OR DECK-OVER)

CROSSMEMBERS

• 3″ CHANNEL ON 12″ CENTERS

DOVETAILS

• 6′ STATIONARY/KNIFE EDGE REAR
• 8′ STATIONARY/KNIFE EDGE REAR

SUSPENSIONS

• TORSION SPRING SUSPENSION STRAIGHT ON 2 AXLES

WHEEL/TIRES

• ST235/85R16 G RADIAL TIRES ON 2-7K

FENDERS

• TANDEM AXLE DRIVE-OVER FENDERS HD TA FENDER

FLOORS

• 2X8 OAK WOOD FLOOR
• 1/8″ DIAMOND PLATE STEEL FLOOR
• BLACKWOOD LUMBER

LIGHTS/WIRINGS

• FLUSHMOUNT LED'S/ STANDARD WIRING/ BATTERY POWER PACK

D-RINGS

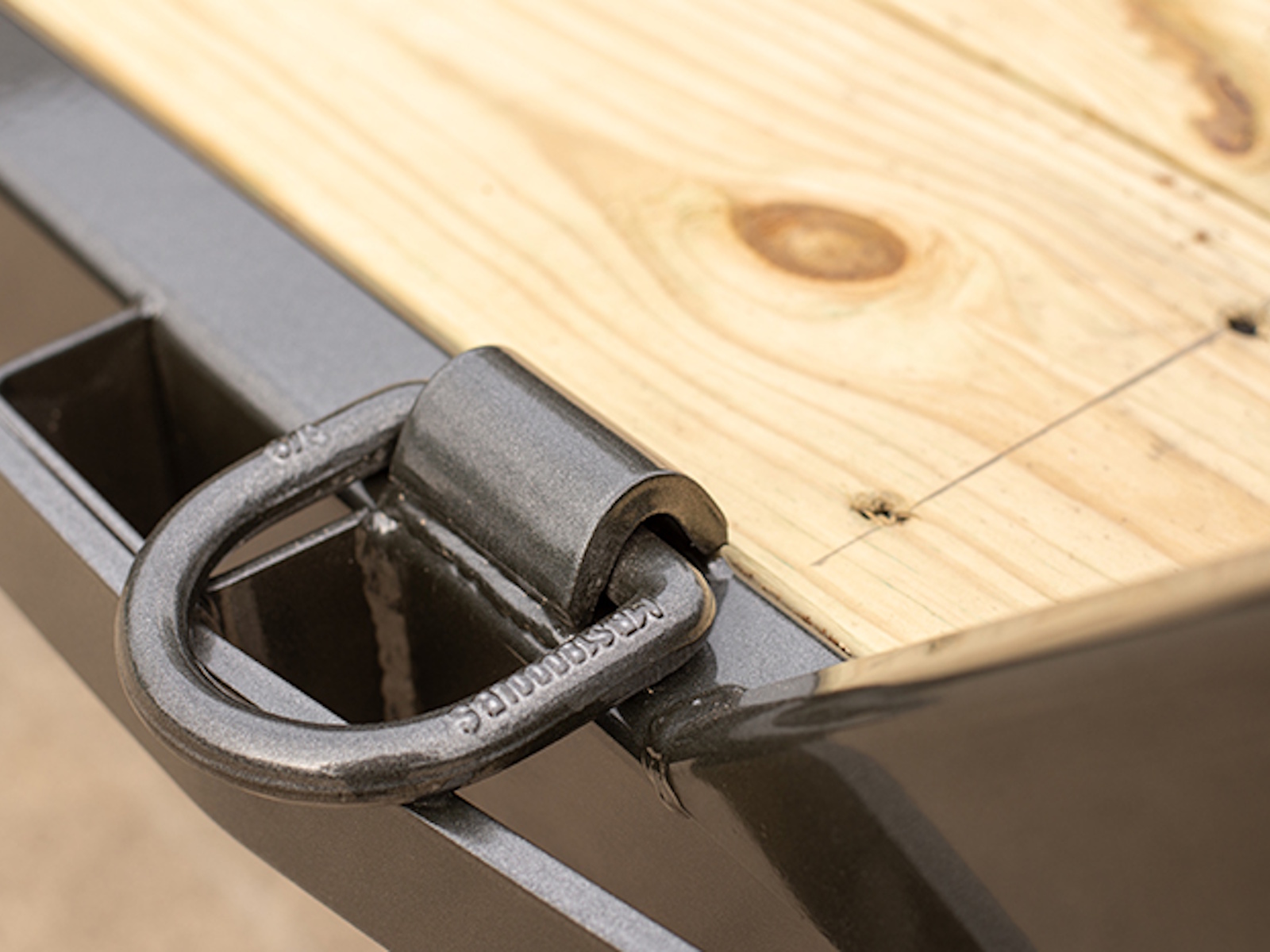

• EXTRA 5/8″ BULL-NOSE DRINGS

SPARES

• SPARE ST235/80R16 E RADIAL TIRE
• SPARE ST235/85R16 G RADIAL TIRE

OTHER OPTIONS

• WINCH ROLLER
• WINCH PLATE IN FRONT OR NECK w/WINCH ROLLER
• WARRIOR 9.5K OR 12K WINCH
• MOUNTED WITH WINCH ROLLER
• WARRIOR 9.5K 12K WINCH IN NECK WITH WINCH ROLLER
