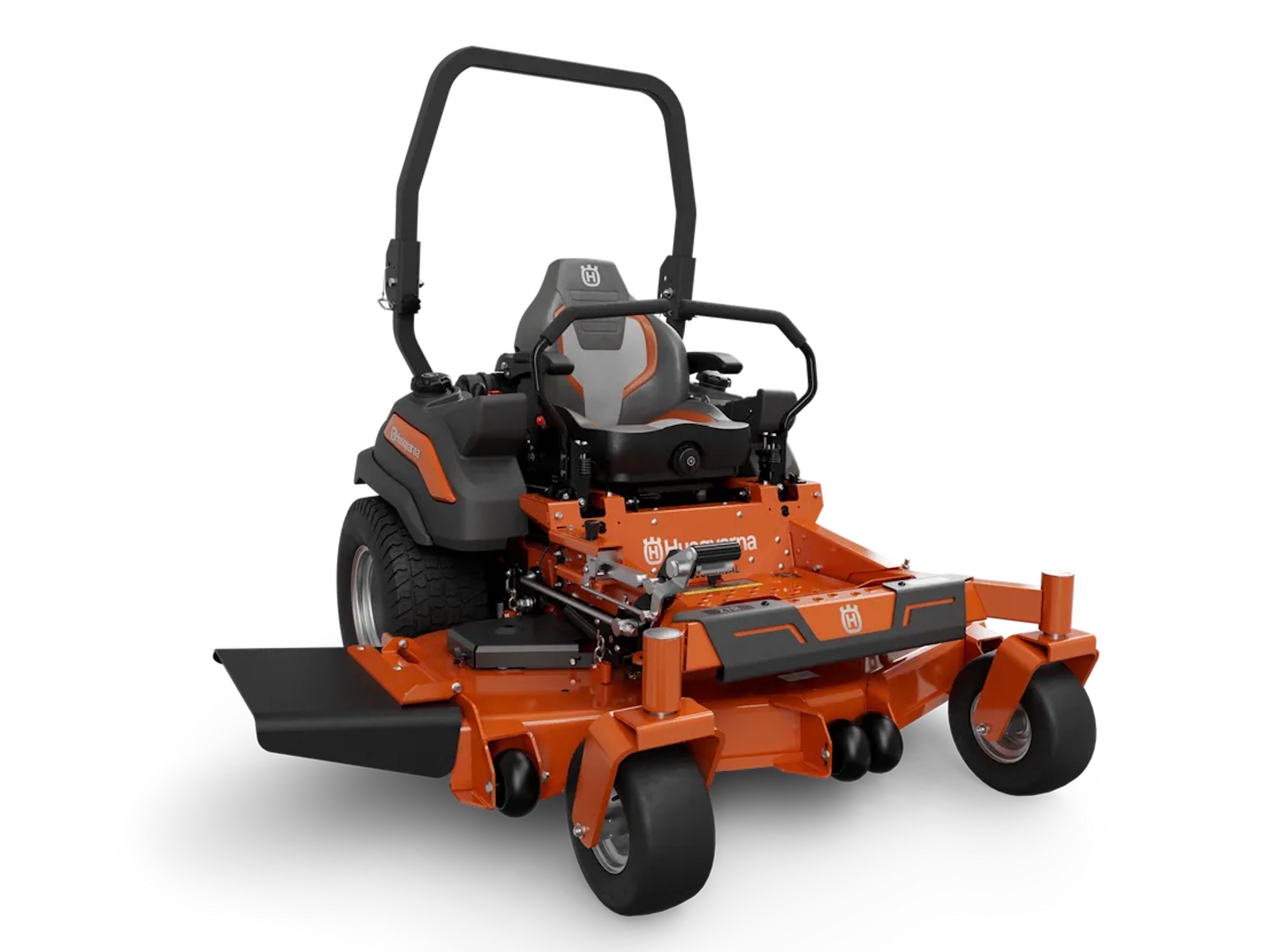

2027 Husqvarna Power Z560XS

Z560XS

The Husqvarna Z500XS Series is a powerhouse of durability and precision. Heavy-duty components like 7-gauge cutting deck, 10" diameter cast iron spindles, commercial duty hydrostatic drive and durable tires keep reliability front and center. Experience increased productivity with powerful fuel injected engines and an efficient 6" deep cutting deck design. Comfort features include full suspension seats, hands-free deck lift, and an automatic park brake for a productive and convenient mowing experience.

Features May Include:

AGM Battery

• A smaller and more robust battery adopted from the transportation industry provides better reliability, improved longevity and more service space.

Heavy duty rubber discharge chute

• The discharge chute is built of heavy-duty rubber to withstand wear and tear while protecting nearby property.

Roll Over Protection System (ROPS)

• The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance.

Kawasaki Fuel Injected Engine

• The Kawasaki FX1000 EFI engine combines big displacement with an integrated electronic throttle control, to give stable torque delivery even in heavy cutting. The result is higher productivity without sacrificing cut quality

Ergonomic controls

• Comfortable, user-focused controls put everything needed to operate the mower within easy reach.

LED fuel gauge

• The automotive style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low.

Cast iron spindles

• 10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.

Automatic parking brake

• The patent pending parking brake system automatically activates or deactivates as the steering levers are moved outward or inward. (Z560X with optional dust boots shown)

Deck height adjustment

• The deck lift system is spring assisted and allows convenient hand free operation. A simple locking pin adjusts cut height.

HydroGear ZT5400 Transmissions

• The largest and most capable commercial transmission in the line-up that will handle the biggest jobs in landscaping

Large fuel capacity

• Twelve gallons of fuel capacity for all-day cutting capability.

Premium suspension seat

• Heavily bolstered cushions provide all day comfort for the operator. Combined with a dial by weight full suspension seat, the Z500 series provides extreme comfort under the most adverse situations

7 gauge fabricated cutting deck

• A deep draw deck, heavy duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish.

Flat Resistant Tires

• The steel belted design of the TurfSteel™ rear tires features a more consistent , flat contact patch to improve traction and a gel lined inner surface to self seal punctures up to 1/4"

Options

• Exhaust emissions (CO₂ EU V): 2 809 g/kWh
• Deck Wash Port: No
• Greasable mandrels: Yes
• Nose roller: No
• Spindle/mandrel type: Cast iron
• Deck lifting system: Manual, foot activated
• Engine Power (As rated by the engine manufacturer): 1 38.5 hp
• Air filter type: Heavy-Duty Canister Style
• Fuel tank location: Side (Dual)
• Motor/engine manufacturer: Kawasaki
• Oil filter: Yes
• Cup holder: Yes
• Hinged armrests: Standard
• Hour meter type: Yes
• ROPS: Standard (foldable)
• Connectivity: Not applicable.
